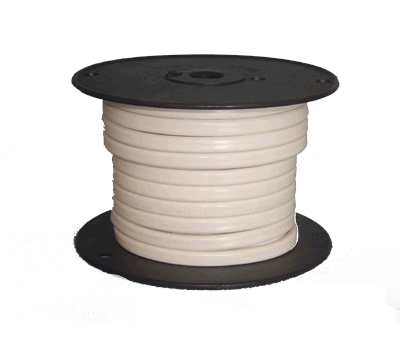

Marine-Grade Tinned Copper Triplex Flat Wire By The Foot

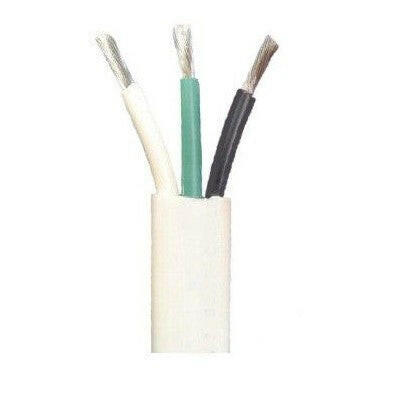

Our Triplex Flat Cable has primary conductors enclosed in an outer jacket that is designed for easy removal, yet durable enough to withstand marine conditions. Conductors are color-coded in white, green, and black for AC use. The stranding is highly flexible for resisting fatigue often caused by vibration and flexing. Conductors are fully tinned for corrosion resistance.

Specifications:

• Type GPT Marine Flat Jacketed Boat Cable
• Soft-annealed, tinned copper conductor
• Polyvinyl chloride (PVC) insulation & jacket
• Class K stranding
• Meets ABYC requirements and recommendations
• Coast Guard approved
• RoHS Compliant
• Standard jacket color: white
• UL: 105°C, 75°C Wet, 600V, 1426, BC-5W2

Available Sizes (AWG):

• 8/3 gauge
• 10/3 gauge
• 12/3 gauge
• 14/3 gauge
• 16/3 gauge
