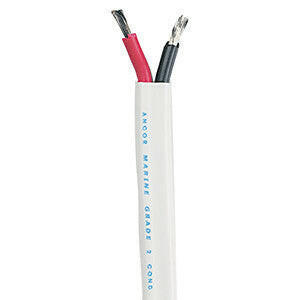

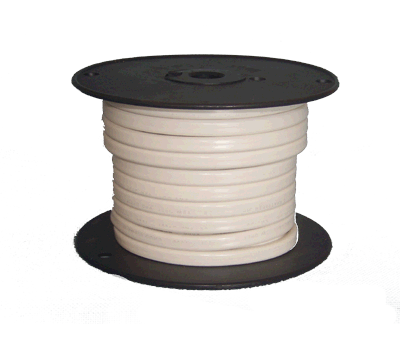

Marine-Grade Tinned Copper Duplex Flat Wire By The Foot

Our Duplex Flat Cable comes with standard (black and red) conductors. They are enclosed in an outer jacket that is designed for easy removal, yet durable enough to withstand marine conditions. The stranding is highly flexible for resisting fatigue often caused by vibration and flexing. Conductors are fully tinned for corrosion resistance.

Specifications:

• Type GPT Marine Flat Jacketed Boat Cable
• Soft-annealed, tinned copper conductor
• Polyvinyl chloride (PVC) insulation & jacket
• Class K stranding
• Meets ABYC requirements and recommendations
• Coast Guard approved
• RoHS Compliant
• Standard jacket color: white
• UL: 105°C, 75°C Wet, 600V, 1426, BC-5W2

Available Sizes (AWG):

• 6/2 gauge
• 8/2 gauge
• 10/2 gauge
• 12/2 gauge
• 14/2 gauge
• 16/2 gauge
• 18/2 gauge
