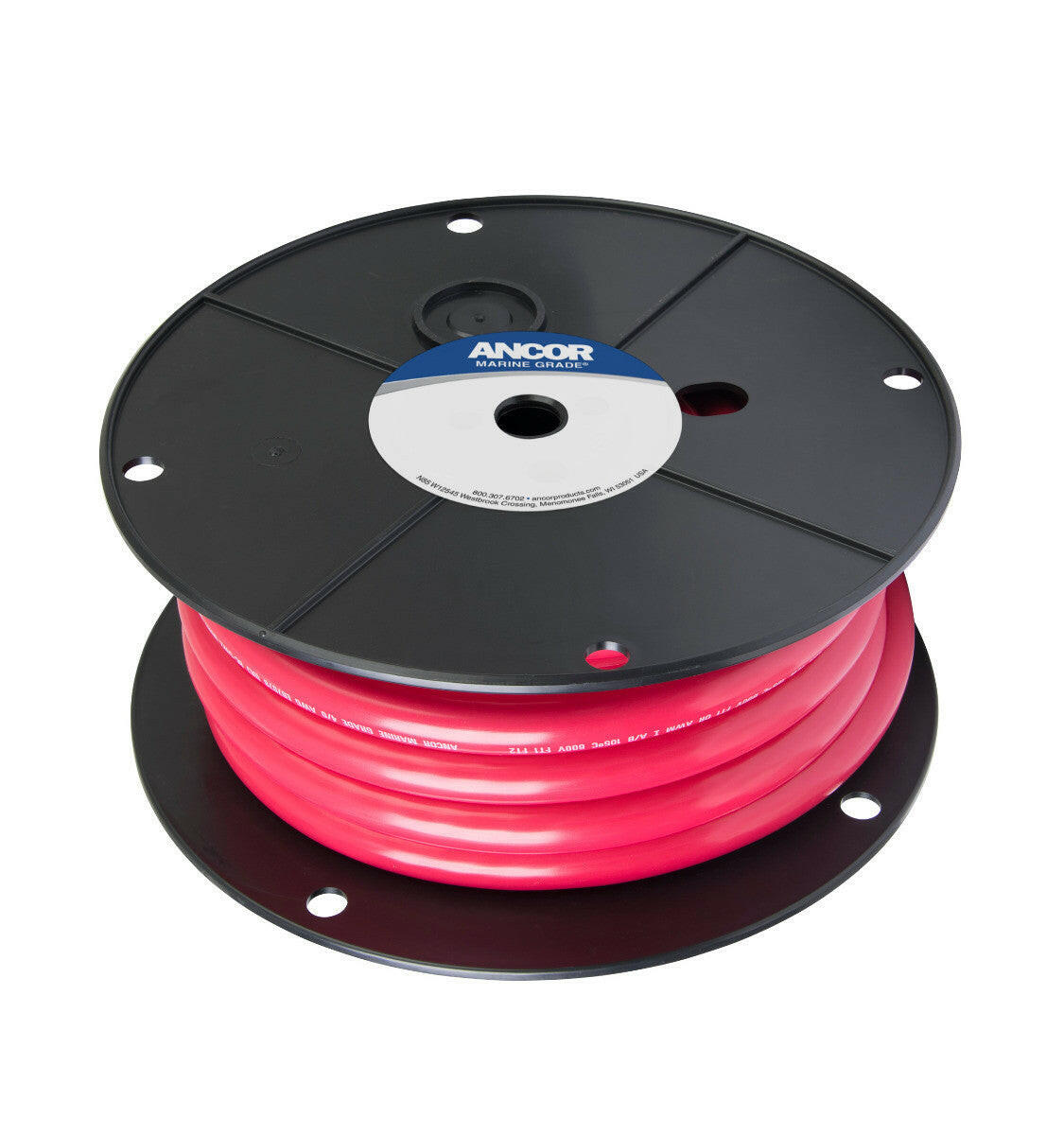

Marine-Grade Tinned Copper Battery Cable 100' Spool

Marine-Grade Tinned Copper Battery Cable 100' Spool

$89.34 USD
$89.34 USD
Sale Sold out
Wire Gauge

Our tinned copper high-strand battery cable is manufactured in the USA specifically for marine use, with each strand tinned for corrosion resistance and finely stranded for flexibility. The PVC insulation resists chafing, salt water, battery acid, oil, gasoline, and diesel fuel. Meets all US Coast Guard requirements for commercial craft, as well as ABYC standards and recommendations; this is also the high-strand wire type specifically required by Victron Energy and many other global manufacturers for connection in high-current DC applications.

All sizes are AWG (American Wire Gauge), which is larger than SAE measurements. One of the interesting features of AWG is that the total conductor area is measured, whether it is a solid wire or stranded. So a stranded wire will have a larger diameter than a solid one, to accommodate the air spaces between the strands.

Specifications:

  • Soft-annealed, tinned copper conductor
  • Polyvinyl chloride (PVC) insulation
  • Class K stranding
  • Meets ABYC requirements and recommendations
  • Coast Guard approved - CFR33, Part 183 ABYC
  • RoHS Compliant
  • UL: 105°C, 75°C Wet, 600V, 1426, BC-5W2
Insulation Thickness Cable O.D. Approx. Weight
AWG Stranding in mm in mm lb/ft kg/m
6 259 X 30 0.06 1.5 0.307 7.8 0.137 0.204
4 420 X 30 0.065 1.7 0.358 9.1 0.168 0.25
2 665 X 30 0.065 1.7 0.471 12 0.258 0.384
1 836 X 30 0.065 1.7 0.524 13.3 0.322 0.479
1/0 1064 X 30 0.065 1.7 0.56 14.2 0.431 0.641
2/0 1330 X 30 0.065 1.7 0.603 15.3 0.497 0.74
4/0 2109 X 30 0.078 2 0.754 19.2 0.779 1.159
