BMS Intermediate 12V 3KVA System Kit

We've designed this intermediate-level kit to give you all the major components you'll need for a highly-capable yet cost-effective 12V/3kVA inverter/charger installation; just add your AC and DC connections and cables. Now including the Cerbo GX and GX Touch 50 for easy system expansion and monitoring!

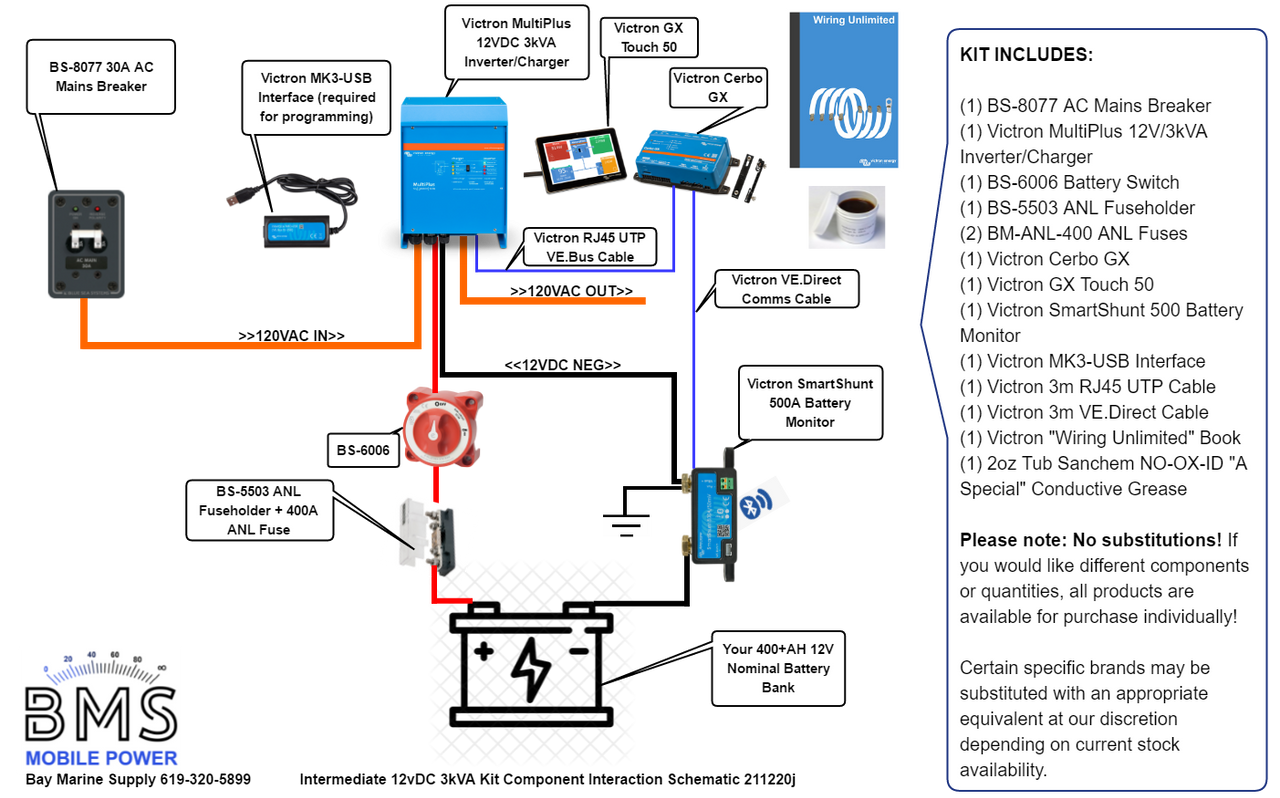

Kit includes:

(1) Victron Energy MultiPlus 12V/3kVA inverter/charger (US 120VAC) Non-UL with 120A (max) charger - See the installation and user manual here

(1) Victron Energy MK3-USB Interface for programming your new MultiPlus - See the VictronConnect VE.Bus programming manual here

(1) Victron Energy Cerbo GX system aggregator / remote control - See the Cerbo GX user manual here

(1) Victron Energy GX Touch 50 5"-class accessory touchscreen for the Cerbo GX

(1) Victron Energy SmartShunt 500A Battery Monitor for keeping track of your battery bank's state of charge and many other factors over bluetooth using the VictronConnect app or through the Cerbo GX (when properly connected)

(1) Victron Energy RJ45 UTP Cable in 3m length for connection to the MK3 during programming, then connection to the Cerbo GX for remote control and system monitoring

(1) Victron Energy VE.Direct Cable in 3m length for connection of the SmartShunt to the Cerbo GX

(1) Blue Sea 8077 30A AC Mains Breaker

(1) Blue Sea 5503 ANL Fuseholder

(2) 400A ANL Fuses (1 for installation and 1 for a spare)

(1) Blue Sea 6006 Main Battery Switch

(1) 2oz tub (or two 1oz tubes) of Sanchem NO-OX-ID "A Special" conductive grease

(1) Victron Energy "Wiring Unlimited" book for easy reference! Also available as a pdf download here
