Blue Sea Systems 5025 ST Blade Fuse Block - 6 Circuit With Cover And Negative Bus
Blue Sea Systems 5025 ST Blade Fuse Block - 6 Circuit With Cover And Negative Bus
Regular price
$36.84 USD
Regular price
Sale price
$36.84 USD
Unit price
/
per
Couldn't load pickup availability

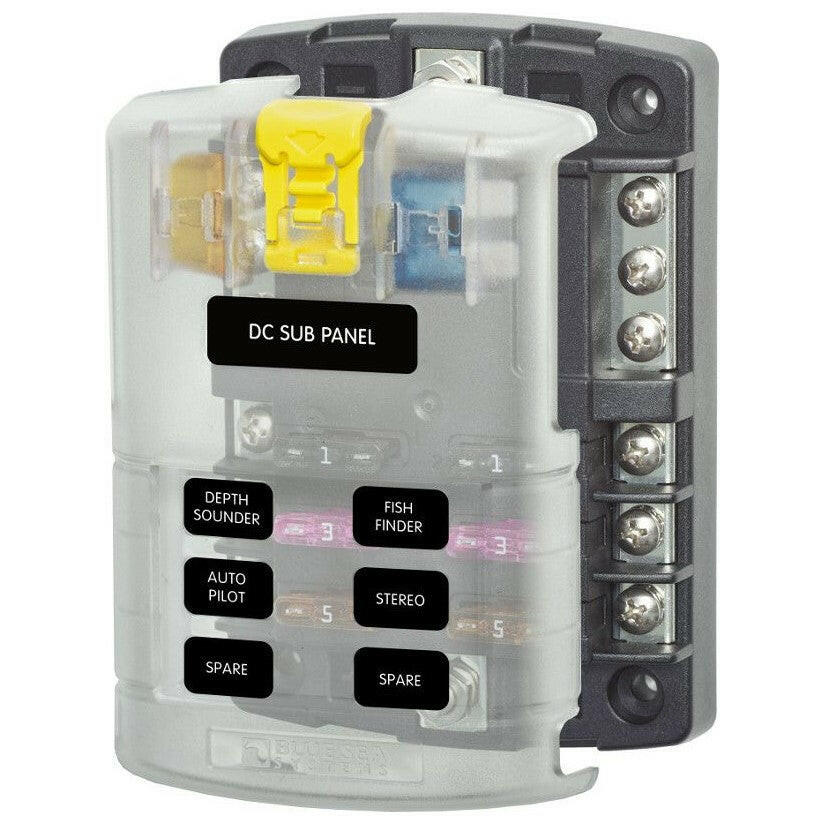

The Blue Sea ST Blade Fuse Bock uses easy-to-find ATO-ATC fuses to protect 6 individual circuits, up to 30A each.
- Can be used for 24-hour circuits
- Clear insulating cover with label recesses accepts Small Format Labels
- Insulating cover satisfies ABYC/USCG insulation requirements
- Insulating cover provides storage for two spare fuses
- Accepts ring or snap fork type terminals
- Easy to open, push button latch
- Tin-plated copper buses and fuse clips
- Positive distribution bus with #10-32 stud
- Includes 20 write-on circuit labels
- Fuses sold separately
| Specifications | |
| Voltage Maximum Operating | 32VDC |
| Amperage Maximum Operating | 30A per circuit |
| Fuse Type | ATO or ATC Fuses |
| Screw Terminal | #8-32 Screws with captive lock washer |
| Mounting | #8 Screw (M4) |
| Recommended Wire Size |
Positive Feed: 4 - 6 AWG (25 - 16 mm²) Branch Circuits: 10 - 16 AWG (6 - 1.5 mm²) |
| Recommended Torque |
#10 Stud: 24 in-lb (2.71 N-m) #8 Screw: 18 in-lb (2.03 N-m) |
