BEP Marinco Pro Installer Link Bars
BEP Marinco Pro Installer Link Bars
Regular price
$5.16 USD
Regular price
Sale price
$5.16 USD
Unit price
/
per
Couldn't load pickup availability
Marinco Link Bars
These link bars are high purity copper, tin plated. They can be doubled for higher loads.
Use the LBJ-3 Link Bars as a 3 Way Joiner.
| Model | Distance between Holes Center to Center | Hole Diameter | Total length of link bar - Outer Dimension |

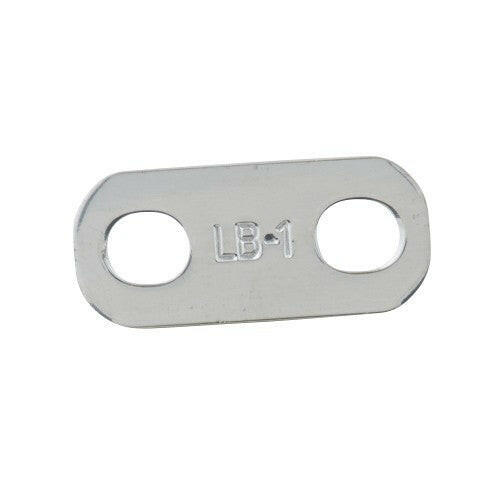

| LB-1 - 2 Holes | 1 5/16" (33 mm) | 7/16" (11.1 mm) x 1/2" (12.7 mm) | 15/16" (23.8 mm) x 2 3/16" (55.5 mm) |
| LB-2 - 2 Holes | 1 11/16" (42.9 mm) | 7/16" (11.1 mm) x 5/8" (15.9 mm) |
15/16" (23.8 mm) x 2 11/16" (68.3 mm) |
| LBJ-2 - 2 Holes | 1 7/8" (47.6 mm) |
Hole 1 - 7/16" (11.1 mm), Hole 2 - 7/16" (11.1 mm) x 9/16" (14.3 mm) |
15/16" (23.8 mm) x 2 15/16" (74.6mm) |
| LBJ-3 - 3 Holes | 1 7/8" (47.6 mm) | 7/16" (11.1 mm) |
15/16" (23.8 mm) x 4 13/16" (122.2 mm) |
| LBJ-5 - 5 Holes | 1 15/16" (49.2 mm) | 7/16" (11.1 mm) |
15/16" (23.8 mm) x 8 3/4" (222.3 mm) |
