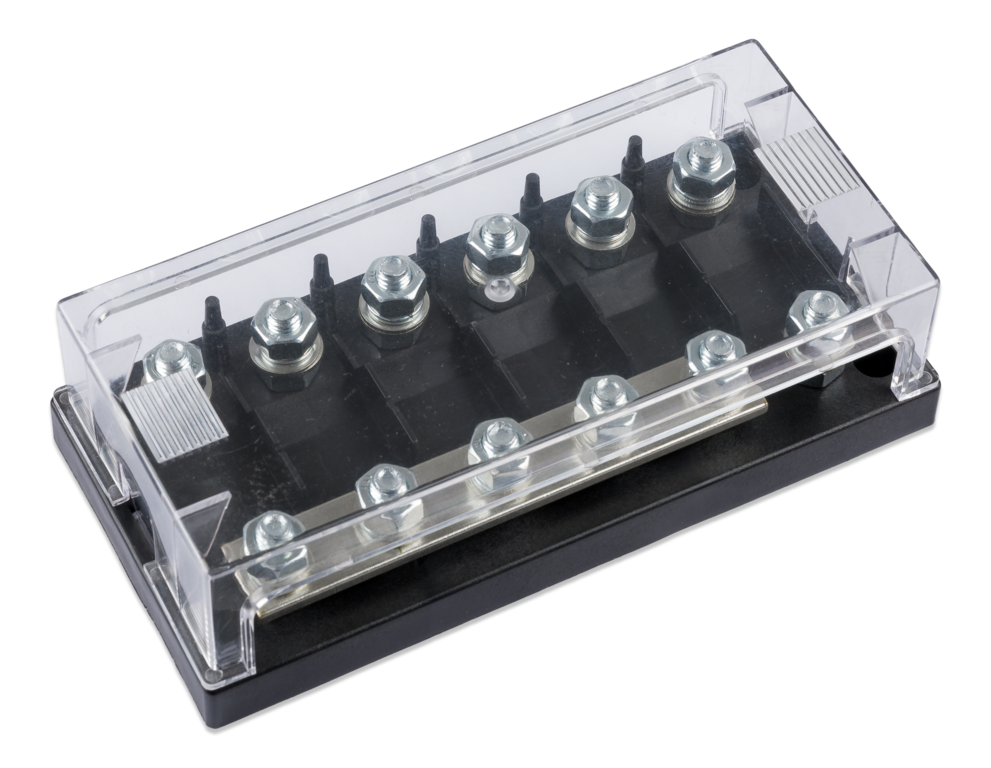

This compact and affordable fuse holder mounts five MEGA fuses on a common copper busbar rated to 250A, plus a single stand-alone fuse, and is rated to 32VDC maximum for appropriate usage on a 12 or 24VDC nominal voltage system.
A typical installation might be a high-capacity stand-alone fuse for an inverter, plus assorted loads like a solar controller, battery charger, and distribution panel mounted to the common source.
Dimension wth the protective cover are 50.9 x 181.5 x 88.0 mm (2.0" x 7.2" x 3.5")
The bolts are galvanized steel, so these arenotrecommended for salt-water environments.
**Assembly is required (pro tip: thin nuts on the bottom, thick nuts on top)!**
