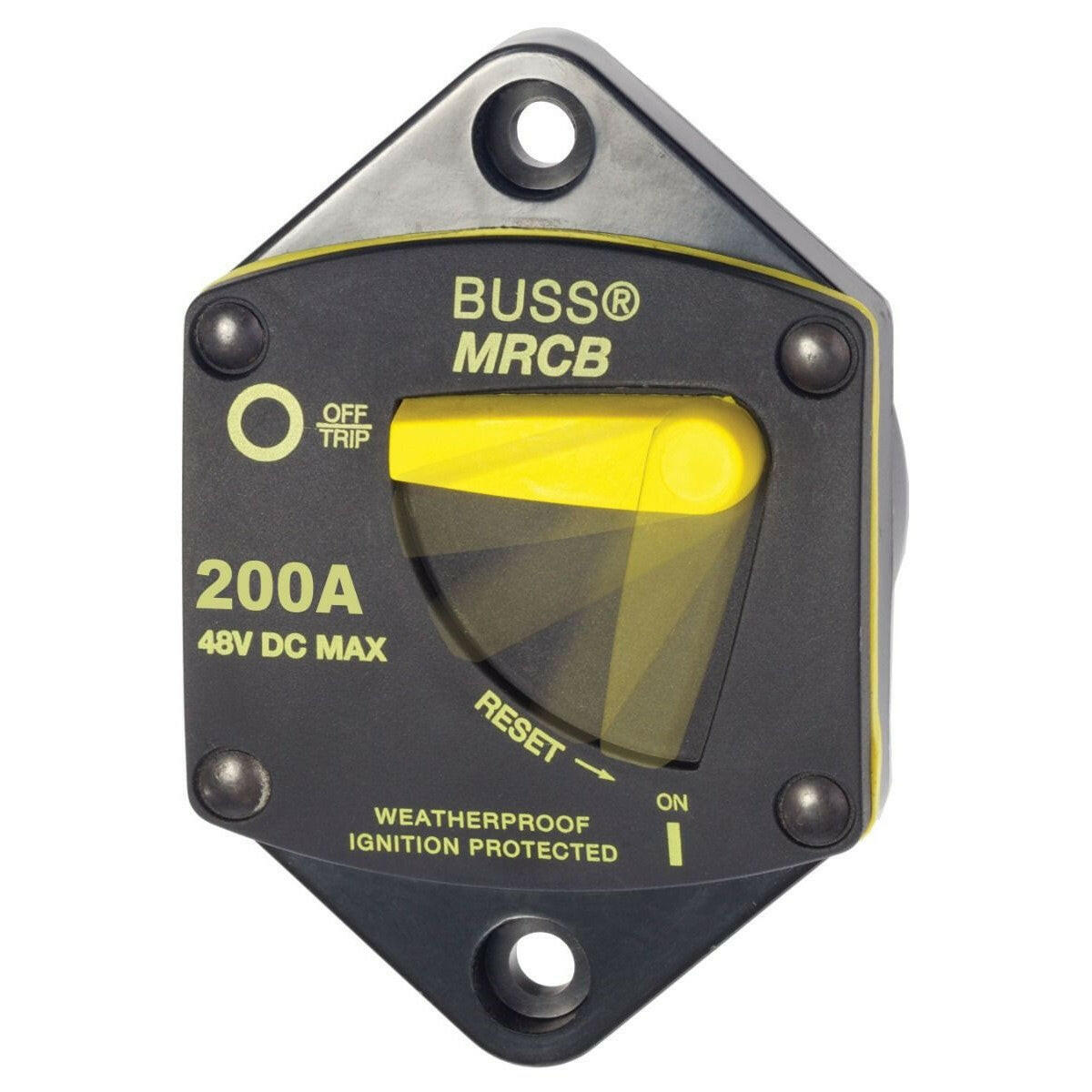

Series 187 Marine Rated Circuit Breaker Panel Mount

Cooper Eaton Bussmann Series 187 Panel-Mount Marine-Rated Circuit Breakers: OEM for Blue Sea Systems PN 7035-7049.

Thermal circuit breakers provide heavy duty circuit protection for 25 to 200 Amp loads when switching and circuit protection are both required.

• Single lever operation - clearly visible
• Trip-free - cannot be held closed after trip
• Self-trimming case eliminates need for mounting panels or trim bezels
• Large clearance around terminal studs accepts up to 1/0 AWG lugs
• Recessed mounting holes for clean appearance
• Robust 5/16"-18 terminals provide high torque connections
• Panel mount
• Ignition protected and IP66 weatherproof for marine use, and comply with ABYC E-11 and SAE J1171.
• Typical uses are for inverters, windlasses, bow thrusters, and solar systems. With the large toggle, they can also act as a switch.
