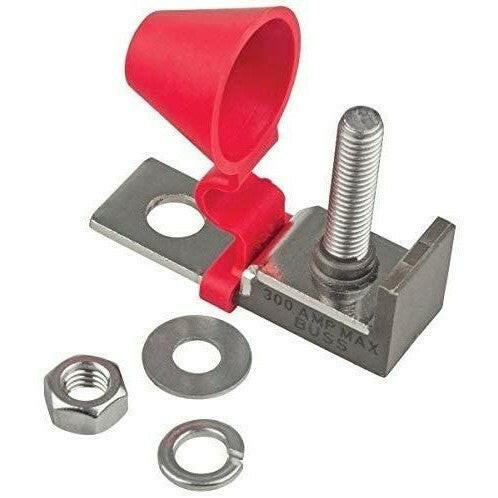

Bussmann MRBF Terminal Fuse Block

Bussmann MRBF Terminal Fuse Block

Regular price $15.95 USD
Regular price Sale price $15.95 USD
Sale Sold out
Circuit Count

These fuse blocks attach right to your 5/16" threaded rod or threaded insert battery post, and accept connections with a 5/16" lug. Fuses are not included.

There are a number of reasons to use these fuse holders:

  • This is the most compact way to mount an MRBF fuse, as long as you have an extra inch above your battery posts
  • They alleviate the hassle of having to make up a short wire to connect a standard fuse block to the battery
  • They make it very easy to comply with the ABYC rule requiring unsheathed wires to have a fuse or breaker within 7" of the battery post

Reasons not to use these fuse blocks include:

  • They handle a maximum of 300 amps
  • Replacement fuses are not as common as ANL or Class T fuses
  • MRBF fuses are more expensive than ANL fuses, but less expensive than Class T fuses

Features:

  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems or Bussmann MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5/16" ring terminals
  • Fuse sold separately

Available in single- or dual-fuse design; select your model above!
