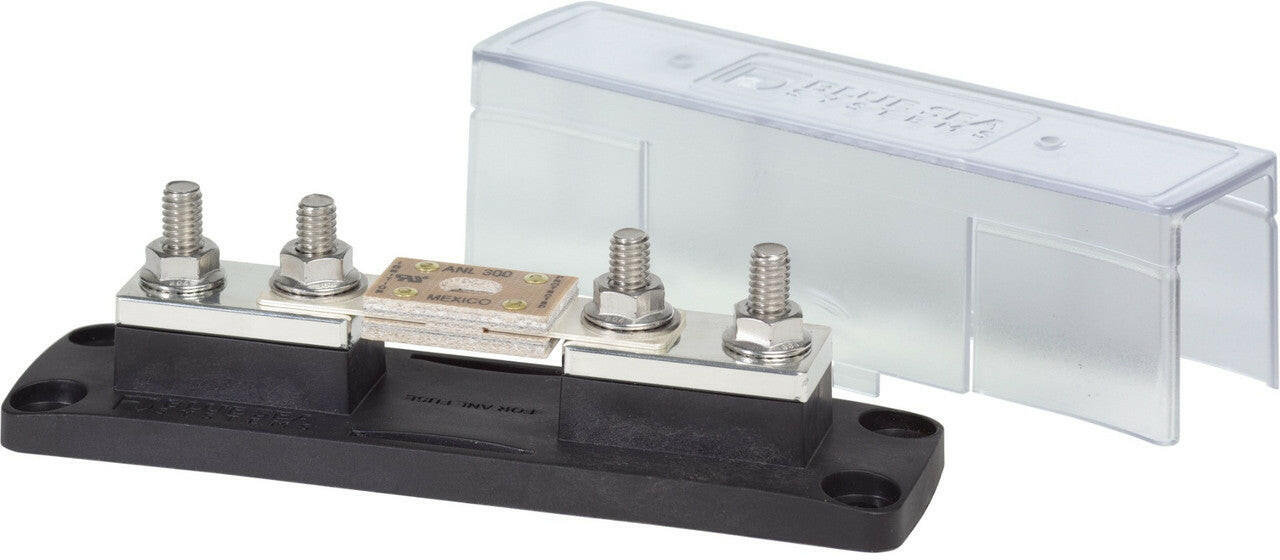

Blue Sea Systems 5503 Heavy Duty ANL Fuse Block

ANL fuse systems are effective, reasonably priced, and widely available. This holder, rated for 35A to 750A service, is useful for all high current applications aboard boats and coaches.

• Blue Sea Systems part #5503
• Swing out design allows replacement of the fuse without removing fasteners
• Insulating cover satisfies ABYC/USCG requirements
• 7"L x 2"W x 2.3"H
• 5/16" (8mm) studs
• Accepts up to 4/0 wire ring terminals
• Rated to 32 volts DC
• Large heat dissipating tin-plated copper mounting blocks
• Two #8 accessory terminals located on each end
• Accepts ANE, ANL, ANN, CNE, or CNL fuses
• Fuses sold separately
