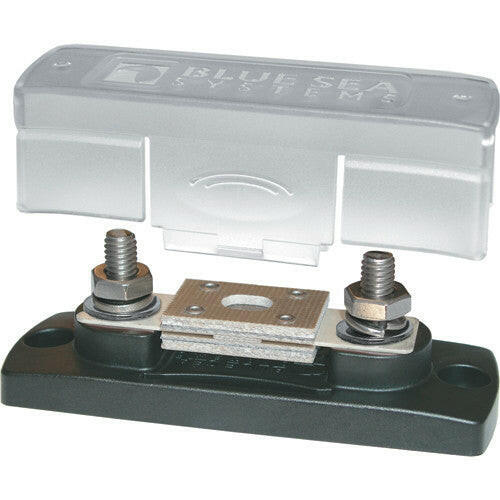

Blue Sea Systems 5005 ANL Fuse Block

ANL fuse systems are effective, reasonably priced, and widely available. This holder, rated for 35A to 300A service, is useful when space and cost is a concern. For loads over 300A, use the heavy duty BS-5503

• Blue Sea Systems part # 5005
• Accepts 5/16" (M8) ring terminals
• Cover breakouts allow wire access in any direction
• Insulating cover satisfies ABYC/USCG requirements
• 4.5" L x 1.5" W x 1.7" H
• Accepts up to 2/0 wire ring terminals
• Rated to 32VDC
• UL 94-V0 base resists high heat
• Accepts ANE, ANL, ANN, CNE, or CNL fuses
• Fuse not included
