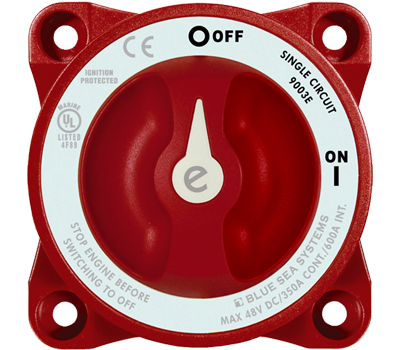

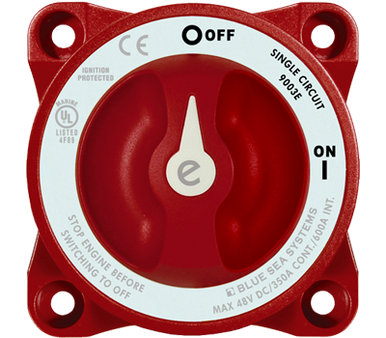

Blue Sea E-Series 9003E Battery Switch - ON / OFF - Red
Blue Sea E-Series 9003E Battery Switch - ON / OFF - Red
Regular price
$38.20 USD
Regular price
Sale price
$38.20 USD
Unit price
/
per
Couldn't load pickup availability
The Blue Sea Systems 9003e is an ON-OFF battery switch rated at 350 amps continuous, for gasoline and diesel environments.
- Switches a single battery to a single load group
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected: safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
Specifications:
| Model Number: | 9003E |
| Cranking Rating: 10 sec. | 2,000 Amps |
| Cranking Rating: 1 min. | 1,000 Amps |
| Intermittent Rating: 5 min. | 600 Amps |
| Continuous Rating | 350 Amps |
| Maximum Voltage Rating | 48 Volts DC |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 N·m) max. |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Cable Size to Meet Ratings | 4/0 AWG (120 mm²) |
| Cable Clearance For 4/0 AWG Cables | 1.10" (27.9 mm) |
| Weight | 0.95 lb (0.43 kg) |
