BMS

Single Point Power Posts

Single Point Power Posts

Regular price $9.25 USD
Regular price Sale price $9.25 USD
Sale Sold out
Single Stud

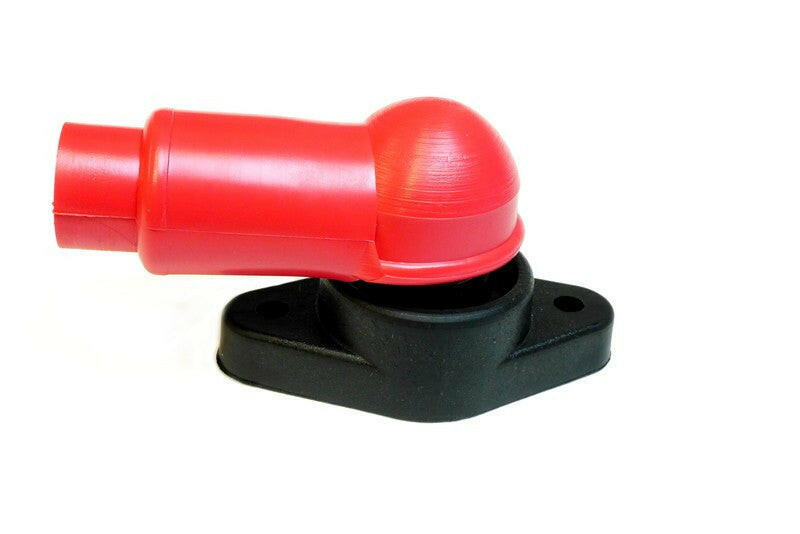

Use these single studs to terminate multiple connections - up to 4 per ABYC standards. Built with stainless studs, nuts, and washers, they're designed for the marine environment.

Available alone or with your choice of red PVC insulating cap:
- Small for #4 to #1 AWG wire
- Medium for #1 to #2/0 AWG wire
- Large for #4/0 AWG wire.

There is some flexibility with sizing, a larger one will usually work well. The caps meets ABYC E-9, USCG 33 Subpart I, and NHTSA FMVSS.302 standards.

  • Maximum current: 150 A @ 12 VDC
  • Maximum voltage: 48 VDC
  • Stud length: 1" (30mm)
  • Mounting screws: #10 or 1/4" (not included)
  • Dimensions, without cap: 3.3" L x 11.75" W x 2.2" H (84 x 44 x 56 mm)
  • Mounting center: 5.7" (145mm)
  • Base: Glass-filled nylon
  • Studs, nuts, washers: Stainless steel
  • Cap: PVC, -44C to 105C, UL 94 V2
