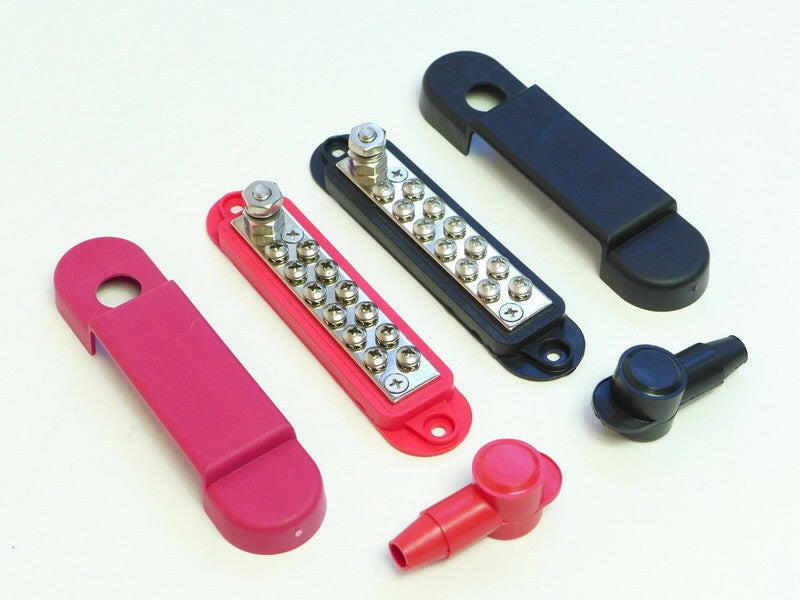

Our own high quality 12 Point Power Distribution Block. This system allows for up to 12 electrical connections, each running up to 15A continuous. With the optional terminal insulators, the assembly complies with USCG, ISO and ABYC standards requirements.
Features:
- 12 connection points, #8-32 stainless steel screws
- Max continuous current: 180A @ 12VDC - 15A per connection
- Max intermittent: 20A per connection (less than 1 minute)
- Max voltage: 48VDC
- 1/4" stainless steel terminal post
- Stainless steel hex nuts and lock washer
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.66 in
- Footprint: 5-1/2" x 1-3/8"
